FSDC Pallet Inverter / Pallet Flipper

Availability: Normally From Stock

Description

Highly versatile free standing FS DC 180° inverter with dual clamps. The FS DC Inverter, often call Pallet Flipper, can be loaded by forklift truck or at ground level by pallet truck with either ramped access or flush to floor tables.

All FS DC Inverter machines are painted with two coats of zinc primer and a 2 pack epoxy acrylic top coat as standard. The standard unit handles loads up to 78 inches and down to as low as 24 inches in height while the loading capacity is 4500lbs.

The FS DC's versatility makes it the ideal choice where there is a big variety of load types and sizes and floor level loading is prefered



    Customised versions of the FS DC Inverter / Flipper can be supplied with such options as:
  1. Increased jaw opening and table size
  2. Pallet grippers to reduce manual handling
  3. Stainless steel, hot zinc spray or "Steel-It" finish available.


Specifications

FSDC SPECIFICATIONS
Usable jaw opening maximum 2.00m
  minimum 0.64m ramp loaded tables
or 0.74m floor flush tables

Increased jaw opening models also available

Load tables 1.30m x 1.30m ramp loaded tables
  1.40m x 1.30m floor flush tables

Normally supplied with 1.20m long loading ramp

Loading capacity 2000 kgs.

Power supply 3ph / 400v/ 20 amp
Motor size 4kW

Weight 2255 kgs
Weight of guards 175 kgs

Controls: Extended individual push button controls with semi or fully auto- sequenced systems available as an option.

Operating space: 2.80m wide x 2.30m deep x 2.48m high inc. attached guards

Depth increases to 3.31m when fitted with floor-fixed guards and multi photo-beams.


Standard shipping dimensions: 2.80m wide x 2.30m deep x 2.20m high with guards fitted.

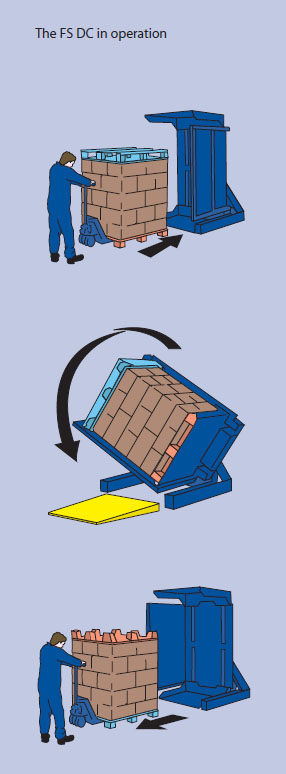

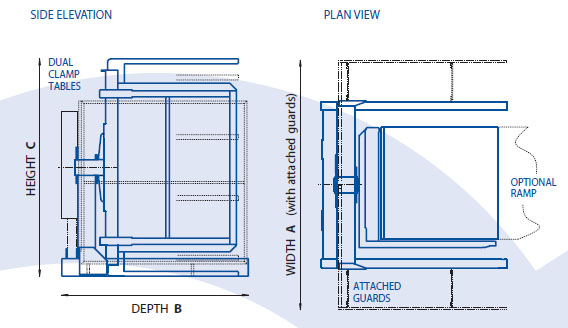

FSDC Dimensions Images of machine
